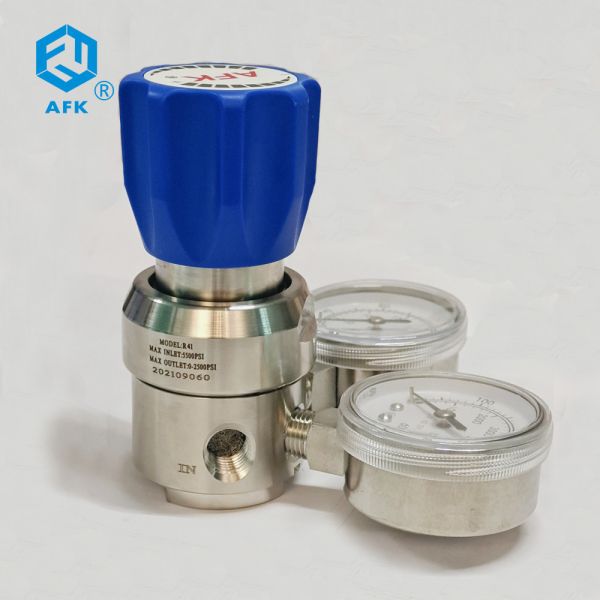

CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

Brand Name : AFK

Model Number : R41

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200

Delivery Time : 10

Packaging Details : Expotrt Packing

After-sales service provided : Online support

Condition : New

Material : Stainless Steel

Warranty : 1 Year

Application : Industry Equipment

Key words : Stainless Steel Pressure Regulator

CV : 0.08

Female thread : 1/4" NPT(F)

Service : Complete After-sales Service

Max Inlet Pressure : 6000psi

Contact Now

R41 series stainless steel pressure reducer adopts piston pressure reducing structure with stable output pressure. It is mainly used for high input pressure requirements, with a maximum pressure of 6000PSI. It is suitable for pure gas, standard gas, corrosive gas, etc.

Design features

Piston type pressure reducing structure

Female thread: 1 / 4 "NPT (f)

Built in filter screen

Panel type or wall type installation can be adopted

characteristic

parameter

  	 			1 			Maximum input pressure 			3000,6000psi
		Output pressure 			0~250,0~500,0~1500,0~3000psig
		Safety test pressure 			1.5 times the maximum input pressure
		Applicable temperature 			-23℃~+230℃
		Leakage rate 			foam
		CV 			0.06


CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS

Product Tags:

6000PSI Double Gauge Pressure Regulator

CE Double Gauge Pressure Regulator

NPT SS Gas Pressure Regulator

CE 6000PSI Double Gauge Pressure Regulator AFK R41 NPT SS Images
