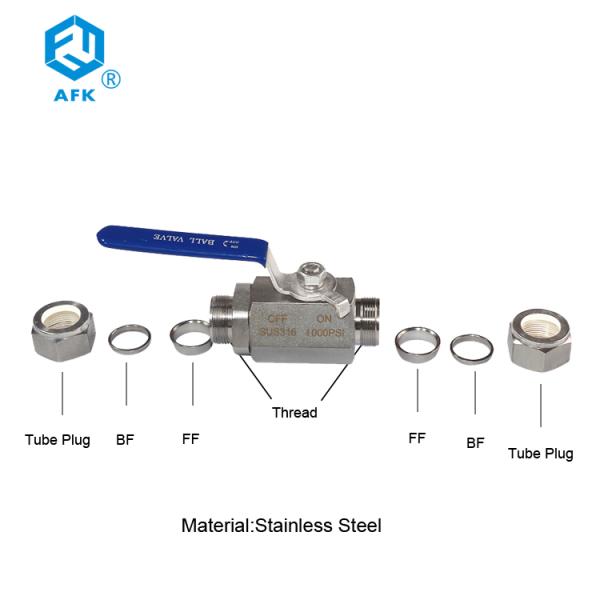

6000PSI Forged Stainless Steel Ball Valve ASME With Straight Handle

Brand Name : AFK

Model Number : BV

Certification : CE

Place of Origin : China

MOQ : 1~10

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000PC

Delivery Time : 1WEEK

Packaging Details : Expotrt Packing

Material : Stainless Steel,316L,Stainless steel 304 or 316,Stainless Steel304 316L

Head code : Other

Technics : Forged

Medium : Oil,Water,Gas

Pressure : 6000PSI

Warranty : 1 Year

Standard or Nonstandard : Standard

Connection : Flanged, threaded, welded

Contact Now

Features

1000WOG , PN63

Reduce Purt

Locking Device Handle Upon Request

Blow-Out Proof Stem

PTFE Packing Sealing

Design Standard : ASME B16.34

Thread : ASME B1.201/BS21/DIN2999/DIN259/ISO288/1

Testing Standard : API598/SP-110

pressure Testing

Standard pressure :	1000 PSI
Shell Pressure Tesing :	10.4 Mpa
Water Seal Tesing :	7.6 Mpa
Air Seal Testing :	0.4-0.7 Mpa

Selection Table

Size	L	Φd	H	W	Torque N.M	cv
1/4"	41	5	35	65	3	2
3/8"	45	7	37	70	3	1.2
1/2"	55	9	44	90	3	1.3
3/4"	59	12.5	47	90	4	2
1"	70	15	50	105	5	3.4
1-1/4"	76	20	57	105	7	7.1
1-1/2"	84	25	69	130	8	12.4
2	97	32	75	130	15	20.3
2-1/2"	124	40	95	180	22	28.5
3"	148	49	105	180	25	47.5

Material List

Item	Part Name	Material
1	Body	CF8M	CF8	WCB
2	Thrust Washer	PTFE
3	Stem Packing	PTFE
4	Gland	SS304
5	Handle	SS304
6	Stop Washer	SS304
7	Nut	SS304
8	Stem	SS316		SS304
9	Handle Cover	VINYL
10	Ball Seat	PTFE		R-PTFE
11	Ball	SS316		SS304
12	End cap	CF8M		CF8
